IATA Messages





Contents



This chapter contains the following sections: page



1 Priority indicator

2 Movement Indicator

3 Departure

4 Delay & Delay codes

5 Next Info Messages

6 Arrival & Diversion

7 Supplemental Information

8 LDM, CPM, UCM, ULDs O/B, PTM & PSM













Ž



Œ







Priority indicator



Introduction

Priority indicators are to be shown at the beginning of the address line followed by a space.

NOTE: Many automated systems generate all messages with an indicator.



Dispatch

A departure message is to be dispatched for every flight operated with flight number, irrespective the owner or operator

NOTES:    · Departure message for code-share flights is to be dispatched as bilaterally agreed.
· Departure message is to be dispatched immediately after take-off.



Message Indicators



There are different indicators for different types of messages:



SS

Ø                  Top priority indicator.

Ø                  Only for distress messages related to an aircraft incident.

QX

Ø                  Priority indicator.

Ø                  Very high transmission costs (200% of standard cost).

QU

Ø                  Stand for “urgent message”.

Ø                  Has priority in transmission, but high transmission cost
(150% of standard cost)

Ø                  To be used for standard operational messages, unless otherwise operationally required.

Ø                  Not to be used to obtain a quick action or reply.

QK

Ø                  Standard indicator.

Ø                  Standard transmission costs.

QD

Ø                  For message with a non-urgent character.

Ø                  Almost as fast as QU, but low transmission cost (60% of standard cost).



Distribution

The departure message is to be distributed as follows:



Standard distribution

Additional distribution

Departure message is to be sent to:

Ø                    Any downline station.

Ø                    Companies and function designators as specified in IDS and/or other airline internal publication.

Ø                    Recipients of the OPS plan or diversion message in cases where an OPS plan or diversion message has been sent.

For delayed and diverted flights:

Ø                    Departure message to be addressed to all stations having received a delay or diversion message for that flight.

In case of technical delays:

Ø                   Supplementary addresses as published in IDS and/or other airline internal publication.

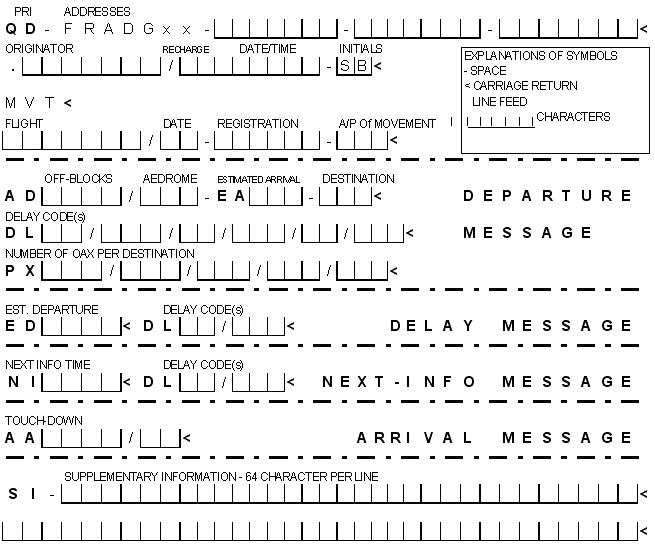

Example of standard departure message



Company Produced

HNDLG Comp Produced

1 Priority & Sent to

QU SXFKPXH SXFKOXH

QU SXFKPXH SXFKOXH

2 Originator

.ISTAPXH 121627

.ISTAPXH SB/121627 YB

Type of Message

MVT

MVT

3 Flight Information

SB8113/12.ECENZ.IST

SB8113/12.ECENZ.IST

3 Actual times to/for

AD1623/1626 EA2020 SXF

AD1623/1626 EA2020 SXF

3 Pax O/B

PX142

PX142

4 Special Information

SI Co-Mail O/B Urgent

SI Co-Mail O/B Urgent



Address and communication references



QU



Priority indicator for movement messages.
QX, QK or QD can also be used.

SXFKPXH SXFKOXH



Teletype address(es) for departure message.

.ISTAPXH 121627

.ISTAPXH SB/121627 YB

Originator,

Originator,

date/time group

recharge,



date/time group



operator’s initials









Recharge, if required.

Teletype address of originator and designator of the airline to be charged for the message must be separated by a space. (SB/)

Date and time group.

Recharge designator and date/time group must be separated by an oblique.

NOTE: The oblique is to be omitted if no recharge designator is shown.(121627)

Operator’s initials, if required.

Date/time group and operator's initials must be separated by a space. (YB)

Unless otherwise required, all dates and times to be expressed in UTC.



Corrections to departure message

If corrections to an already dispatched departure message are necessary:

Ø            Dispatch again a complete departure message.

Ø            Use the message identifier COR in addition to the normal identifier
(COR
à MVT).

Ø            Dispatch the corrected departure message as soon as the correction is made.





: Movement Indicator



Standard message identifier and flight recorder



MVT                                                           Movement Message

RAT0123/09.ECENZ.IST                         Call-Sign/Date.Reg.Dep From



ƒ: Departure Message



a) Departure message



MVT

RAT0123/09.ECENZ.IST

AD1245/1253 EA 1559DUS

PX323

=

b) Departure Message for
Delayed Flight

MVT

RAT0123/09. ECENZ.IST

AD1245/1253 EA 1559DUS

DL93/81/0020/0015

PX323=

c) Departure Message for
Multi Sector Flight

MVT

RAT0123/09. ECENZ.IST

AD1245/1253 EA 1559DUS

PX223/100

=

d) Correction to Departure message

COR

MVT

RAT0123/09.ECENZ.IST

AD1145/1153 EA 1459DUS

PX323=



Definition of times



The times in the message(s) will be defined as follows;



AA

actual time of arrival, consisting of time of touch-down actual time, when the aircraft come to rest (on blocks)

AD

actual time of departure, consisting of actual time, when the aircraft starts to move, either by its own power or pushback (off-blocks) time of takeoff (airborne time)

EA

estimated time of arrival

ED

estimated time of departure

NI

when the next information will be given in case of indefinite delays



FLIGHT INFORMATION

Ž



AD1245/1253 EA 1559DUS

AD1245/1253 EA 1559DUS

Actual Departure

Off Blocks 12:45/Take-off 12:53

          Estimated Arrival time 15:59 to DUS

The time groups are to be separated by an oblique.

Ž



DL93/81/0020/0015

DL93/81/0020/0015

Delay93/81/duration 0020/0015

93= Aeroplane rotation

          (00:20 min delay for 93)

81= ATFM due to ATC en-route demand/capacity

         (00:15 min delay for 81)

Ž



PX223/100

PX323+02

Total Revenue Pax 323 and 02 no seat holder

PX223/100

Passenger on board;

          For the first Destination DUS, 223 Pax

          Transit to the second destination 100 Pax



Special Information



SI Check Co-Mail Urgent

SI Check Co-Mail-Urgent

Special Information

Check Co-Mail-Urgent







Revenue Pax : Any passenger travelling with a paid ticket.

no seat holder : Any Passenger travelling with a paid ticket but not occupaying a seat ( 0-24 month = Infant) or
Any passenger travelling with reduced or no-fee ticket either occupaying a passenger seat or crew seat.



TOW and TOF information at SI for continental flights;

Take-off mass and take-off fuel shall be copied from loadsheet and fuelling order respectively.

TOW = Actual take-off mass according to loadsheet.

TOF = Actual take-off fuel according to fuelling order.

The mass figures shall be rounded up to the next 100 kg.



DELAY MESSAGE



a) Delay Message

MVT

RAT0123/09. ECENZ. IST

ED091300

DL81

=





b) Delay Message

MVT

RAT0123/09. ECENZ. IST

ED100100

DL81

SI DEL TWO

=

c) Delay Message

MVT

RAT0123/09. ECENZ. IST

NI091245

DL41

SI HYDRAULIC PUMP CHANGE

=





Estimated Time of Departure

on date 10th  at 01:00.

Next Information

On date 09th at 12:45

Delay Code 81

ATFM due to ATC en-route demand/capacity



Delay Code 41

Aeroplane defects, except damage to aeroplane due to outside causes.



Estimated time of departure.

Estimated departure time indicator ED is followed by the estimated departure time.

Any subsequent delay message originated by the same station, must also be numbered in the SI-lines, e.g.;

second delay message : SI : DEL TWO

third delay message        : SI : DEL THREE



Next information:

1.     If a revised time of departure cannot be estimated even approximately at the time of the origination of the delay message, the indicator NI for “Next Information“ shall be used in lieu of the indicator ED.

2.     The indicator NI is followed by the date/time group at which further information will be issued.

See delay message samples above.



Delay codes



General

Delay codes are used to express the reason for delay or other handling irregularities in aeroplane movement messages. They must be applied impartially, as a means to identify corrective action.

In case of doubt of interpretation, the SI part of the movement message may be used for supplementary explanation.

Subcodes are to be specified in the SI part of the movement message.



(Bazý temel Kod’lar, tüm havayolu iþleticileri için genel olduklarýndan yazýlmýþtýr.
Eksik yada karþýlýðýný göremedikleriniz, þirketlerin Yer Ýþletme Talimatlarýnda yer alabilir ve þirkete özgüdür,sb)



Airline internal codes

01 02 03 04

Other codes

06 07 09

Passenger and baggage

11 12 13 14 15 16 17 18



Cargo and Mail

21 22 23 24 25 26

Mail only

27 28 29

Aeroplane and ramp handling

31 32 33 34 35 36 37 38 39



Technical and aeroplane equipment

41 42 43 44 45 46 47 48



Damage to aeroplane

51 52

EDP/Automated equipment failure

55 56 57 58

Flight operations and crewing

61 62 63 64 65 66 67 68 69



Weather

71 72 73 74 75 76 77



Air Traffic Flow Management restrictions

81 82 83 84

Airport and Governmental Authorities

85 86 87 88 89

Reactionary

91 92 93 94 95 96

Miscellaneous

97 98 99









ARRIVAL MESSAGE

AA1340/1354

AA1340/1354

Actual Arrival



          Actual Touch-down 13:40,

          Actual On-Blocks 13:54

The time groups are to be separated by an oblique.



Dispatch

An arrival message is to be dispatched for every flight:

Operated with flight number, irrespective the owner or operator.

NOTE:

Ø     Arrival message for code-share flights is to be dispatched as bilaterally agreed.

Ø     Arrival message is to be dispatched immediately after landing.



Corrections to arrival message

If corrections to an already dispatched arrival message are necessary:

Ø     Dispatch again a complete arrival message.

Ø     Use the message identifier COR in addition to the normal identifier MVT.

Ø     Dispatch the corrected arrival message as soon as the correction is made.



Example of a standard arrival message



QD BSLKZSR ZRHOWSR

QD BSLKZSR ZRHOWSR

.ISTAPXH LX/121356

.ISTAPXH LX/121406

MVT

COR

LX8112/12.ECENZ.IST

MVT

AA1340/1354

LX8112/12.ECENZ.IST

SI NIL

AA1354/1401



SI NIL



AA1340/1354

AA Actual Arrival



13:40 Actual Touch-down, 13:54 Actual On-Blocks



The arrival identifier AA is followed by touch down and on-block time. The time groups are to be separated by an oblique.





Diversion message

Diversion message is to be sent to:

Ø     All stations of the flight schedule.

Ø     Companies and function designators as specified in IDS and/or other airline internal publication.



Message example

QU ZRHOWSR BSLKZSR ISTKZSR ISTKKXH ESBKZXH ESBKKSR

.ISTKKXH SR/261610 YB

DIV

SR8694/26.ECENZ.IST

EA1645 ESB

DR72 PX151

SI ALL RUNWAYS CLOSED DUE HEAVY WIND



DIV





Diversion Message

SR8694/26.ECENZ.IST





Call-sign/date.reg.intended-Destination

EA1645 ESB





Estimated Arrival time (16:45) to ESB

DR72 PX151





DR (Code for Diversion), Reason as DL Code 72; PAX O/B 151

SI ALL RUNWAYS CLOSED DUE HEAVY WIND





SI: Explanations if needed.















Special Information



SI Check Co-Mail Urgent

SI Check Co-Mail-Urgent

Special Information
Check Co-Mail - Urgent









The supplementary information indicator SI is followed by a space. It must begin a new line.



TOW and TOF information at SI for continental flights;

Take-off mass and take-off fuel shall be copied from loadsheet and fuelling order respectively.

TOW = Actual take-off mass according to loadsheet.

TOF = Actual take-off fuel according to fuelling order.

The mass figures shall be rounded up to the next 100 kg.





Loadmessage



The Loadmessage shall be transmitted

Ø     for all multi sector flights to the next station except the last station of the multi sector flight

Ø     to the alternate station, if the landing at the next scheduled destination seems doubtful.

Ø     from the scheduled destination station to the alternate station if the aircraft is diverted during flight

The load message will be completed by transferring all load details into the shaded boxes of the Loadsheet for every destination of the flight in the sequence of routing. Last minute changes must be considered in the load message.

The station dispatching the load message is responsible for the correct transmission of the message. A cross-check therefore shall be made between the Loadsheet and the copy of the Teletype Loadmessage. In case of discrepancies, a second message shall be sent giving the appropriate correction. In this case the indication “COR” - corrected version- shall be stated in the message.



EXAMPLE:

QD FRAOWSB FRAKZSB ISTUSXH FRASPSB

.ESBUSXH SB/091315SB

LDM

RAT0123/09.ECENZ.Y323.3/8

-DUS.161/119/43/19.T.9335.2/2105.4/5330 5/1900 PAX/323 B/8775 C/1450

=



EXAMPLE:

QD FRAOWSB FRAKZSB ISTUSXH FRASPSB

.ESBUSXH SB/091315SB

COR

LDM

RAT0123/09. ECENZ.Y323.3/8

-DUS.161/119/43/19.T.9335.2/2105.4/5330 5/1900 PAX/323 B/8775 C/1450





Explanations



LDM

           Load Message

COR

           Correction to Load Message

RAT0123/09.ECENZ.Y323.3/8

           RAT0123 (Call-sign)

           RAT0123/09 (Date)

           RAT0123/09.ECENZ (Registration)

           RAT0123/09.ECENZ.Y323 (A/C Pax Capacity-All Echonomy 323)

           RAT0123/09.ECENZ.Y323.3/8 (Cockpit/Cabin-Crew Configuration)

-DUS.161/119/43/19.T.9335.2/2105.4/5330 5/1900 PAX/323 B/8775 C/1450

           -DUS (Destination) 161/119/43/19.T.9335.2/2105.4/5330 5/1900 PAX/323 B/8775 C/1450

           Pax as 161 Male, 119 Female, 43 Child, 19 Infant

Can be expressed as 280/43/19 if agreed (280 Adult / 43 Children / 19 Infant)

Can be expressed as F-C-Y according to configuration. (F First, C Club, Y Economy)

          -DUS.161/119/43/19.T.9335.2/2105.4/5330 5/1900 PAX/323 B/8775 C/1450

           T for Total 9335, At hold 2 2105, At hold 4 5330 and At hold 5 1900 kg

          -DUS.161/119/43/19.T.9335.2/2105.4/5330 5/1900 PAX/323 B/8775 C/1450

           Total Pax 323

           Total Baggege weight is 8775 and Total Cargo weight is 1450 kg



For each destination, another info line is added,



-DUS.80/59/22/10.T.4669.2/1450.4/2650 5/900 PAX/165 B/8775 C/1450

-CGN.81/60/21/09.T.4666.2/1100.4/2680 5/1000 PAX/158 B/8775 C/NIL



EXAMPLE:



QD FRAOWSB FRAKZSB ISTUSXH FRASPSB

.ESBUSXH SB/091315SB

LDM

RAT0123/09. ECENZ.F0/C42/Y108.2/6

-DUS.0/42/86.T.550.2/440.4/110 PAX/128 B/440 C/110

.PAD/0/0/1

.HEA/1/110

SI NIL



Explanations



QD FRAOWSB FRAKZSB ISTUSXH FRASPSB

.ESBUSXH SB/091315SB

LDM

RAT0123/09. ECENZ.F0/C42/Y108.2/6

          This A/C is configured as First 0 / Club 42 / Economy 108 and the
          Crew Composition is Cockpit 2 and Cabin 6.

-DUS.0/42/86.T.550.2/440.4/110 PAX/128 B/440 C/110

          -DUS(destination).0/42/86.T.550.2/440.4/110 PAX/128 B/440 C/110

          -DUS.0/42/86.T.550.2/440.4/110 PAX/128 B/440 C/110

          42 club seat are full and only 86 of 108 economy passengers are on board.

          -DUS.0/42/86.T.550.2/440.4/110 PAX/128 B/440 C/110

                     Total cargo is 550kg, to hold 2 440 and to hold 4 110kg is loaded.

          -DUS.0/42/86.T.550.2/440.4/110 PAX/128 B/440 C/110

                                     Total Passenger O/B is 128.

          -DUS.0/42/86.T.550.2/440.4/110 PAX/128 B/440 C/110

                   Total baggage weight is 440 and Total cargo is 110 kgs.

.PAD/0/0/1

          Among the 86 of economy passengers, there is 1 no-fee passenger.
(
Passenger Available for Disembarkation)

.HEA/1/110

          One peace of heavy cargo (110 kgs) is loaded,

SI NIL





Container/pallet distribution message (CPM)



Purpose



The container/pallet distribution message:

Ø     Is a basis for load planning at transit stations.

Ø     Gives information for the disposition of adequate equipment and manpower for the unloading.

Ø     Gives information to calculate the unloading sequence (e.g. to prevent tail-tipping).



The container/pallet distribution message is built up as follows:

1.     Address and communication references.

2.     Standard message identifier and flight record.

3.     ULD information.

4.     Bulk load information.

5.     Supplementary information.



Load category codes:

1.     Mass of ULD and load category code or group of load category codes must be separated by an oblique.

2.     The codes listed below are to be used for the identification of the different load categories:



Code Description



B

Local baggage

BF

First class baggage (red priority baggage)

BC

Business class baggage (blue priority baggage)

BY

Economy class baggage

BT

Transfer baggage

C

Cargo

D

Crew baggage

E

Extra equipment (e.g. additional catering, unmanifested flight spares, etc.)

H

ULD and/or its load to be transhipped to a connecting flight (onward destination and/or flight to be shown in SI element).

M

Mail

N

No container or pallet at position (empty position/”no-fit”)

T

Transfer load (the letter ”T” must be added to the appropriate load category code, e.g. ”BT” for transfer baggage)

U

Unserviceable container/pallet

X

Empty container or pallet



Example



QU ISTKLLX ZRHKMXH

.ZRHKLXH SB/021214/XY

CPM

SB1954/02.ECENZ.31904H01

-11L/PKC/IST/630/C

-12L/AKH/IST/600/C

-41L/AKH/IST/620/C

-42L/AKH/IST/583/BC/BY0

-43L/DZH/IST/96/E/BY

-5/IST/50/BY

SI

TWO BABY-STROLLERS IN CPT 5



Explanations



CPM

          Container/pallet distribution message (CPM)

SB1954/02.ECENZ.A300B4

          Call-sign/Date.Registration/AircraftVersionNumber

-11L/PKC/IST/630/C

          Position/Type/DEST/Kgs/Type of Load-Cargo

-12L/AKH/IST/600/C

          Position/Type/DEST/Kgs/Type of Load-Cargo

-41L/AKH/IST/620/C

          Position/Type/DEST/Kgs/Type of Load-Cargo

-42L/AKH/IST/583/BC/BY0

          Position/Type/DEST/Kgs/Type of Load-Business class baggage /Economy Baggage NIL

-43L/DZH/IST/96/E/BY

             Position/Type/DEST/Kgs/Type of Load- Extra equipment and Economy Baggage

-5/IST/50/BY

          Position/DEST/Kgs/Type of Load-Economy Baggage

SI

TWO BABY-STROLLERS IN CPT 5







Other Examples



QD SSGKLSB DLAKLSB ZRHKMXH

.ZRHKLXH SB/300859/MAR04

CPM

SB272/30.ECENZ.300B4

-11/PWB/SSG/1540/C

-12P/PMC/SSG/1610/C

-13P/PMC/SSG/1660/C

-21P/PMC/DLA/2870/C

-22P/PAJ/DLA/3375/C

-31L/XKN/DLA/615/C

-31R/AKE/DLA/765/C

-32/PLB/DLA/1590/C

-33L/AVE/DLA/813/M1

-33R/AVE/DLA/740/BY1

-41L/AVE/DLA/840/BY0

-41R/AKE/SSG/780/C.COL/149

-42L/AVE/DLA/948/BY0

-42R/AVE/SSG/513/BY2

-43L/AVE/DLA/370/BC3

-43R/AVE/SSG/267/BC3

-5/SSG/633/M/BY/C.RRY/0PT3.XPS/DLA/511/C/BY

-DIP/DLA/6/C

SI

ONE BABY-STROLLER TO SSG IN CPT 5



QD FRAOWSB ISTKZSB ISTUSXH

.ESBUSXH SB/091321SB

UCM

SB1954/02.ECENZ. A300B4

IN

PAG5427SB.PAJ2438SB.PAP1510SB.FLA1220SB

PLA4002SB.ALP0052SB.PDJ9086SB.PIP2172SB

OUT

PAP3003SB.PIP2172SB.PIP1073SB.PIP8885SB

PAG0633SB.FLA0734SB.PIP5252SB.PAG0129SB

=



UCM



QD ZRHFMSB

.YULKKSB 010317

UCM

SB135/31JUL.ECENZ.YUL

IN

.PAP4937SB.AAK5583SB.AVE6843SB.AVE6772SB.AVE6193SB.AVE6057SB

OUT

.PAP4752SB/ZRH/C.RAP9005SB/GVA/C.AWD2508SB/CAI/C.AVE9518SB/GVA/C

.AVE6227SB/ZRH/B.PAP4787SB/XXX.PAP4838SB/XXX

SI PAL PAP4783SB/PAP4838SB RETURNED TO ZRH TO REDUCE OVERSTOCK

AT YUL COR AWD2508SB TO READ 2503SB



A complete UCM (combined IN- and OUT message) is to be dispatched:

If the departure of the outbound flight/truck is within 3 hours after arrival of the inbound flight/truck, and on the same day.

The flight/truck service numbers of in- and outbound flight/truck must be mentioned.

A separate IN- and OUT message is to be dispatched:

If the departure of the outbound flight/truck is more than 3 hours after arrival of the inbound flight/truck, or if arrival and departure are on a different day.

The IN message must be dispatched not later than 3 hours after arrival of the inbound flight/truck.



Dispatch by transit stations

A separate IN- and OUT message is to be dispatched if arrival and departure are on different days (e.g. arrival before midnight, departure after midnight).



Number of return flight or truck service:

1.     This information is required only in UCMs dispatched by turn-around stations.

2.     The airline designator need not be given.

3.     Flight or truck service number and number of return flight or truck service must be separated by an oblique.



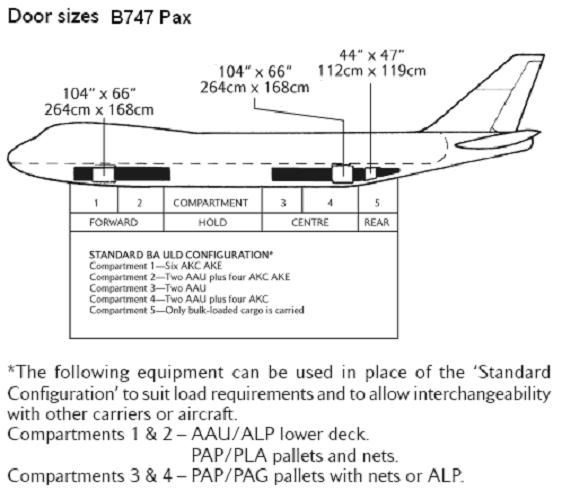

UNIT LOAD DEVICES



Type

Max.Weight

TotalArea(m)

Useful area(m)

Aircraft

Pallet P1

6.804Kg

3,18x2,24

2,98 x 2,04

B727Cgo, B767, DC10 Pax/Cgo, B747 and MD11

Pallet P6

6.804Kg

3,18x2,44

2,98 x 2,24

DC10 Cgo, B767200, B747 and 11

Pallet P7

13.608Kg

6,06 x 2,44

5,92 x 2,24

DC10 Cgo, B747 Combi and Cgo

Pallet P9

3.175Kg

3,18 x 1,53

2,98 x 1,33

DC10 Pax/ Cgo, B747 and MD11

Pallet FQA

11.340Kg

4,97 x 2,44

4,77 x 2,24

B747 Combi and 10 Cgo



Type

Max.W

TotalArea(m)

Useful area(m)

Aircraft

Container LD2

1.225Kg

3,91 x 5,03 x 5,33

3,65 x 4,77 x 5,13

B767, DC10, Pax/Cgo, B747, MD11

Container LD3 (RKN)

1.331 kg

2,00 x 1,53 x 1,62

1,88 x 1,39 x 1,37

B767, B727F, DC10F e MD-11

Container LD8

2.450 Kg

7,99 x 5,03 x 5,33

7,73 x 4,77 x 5,13

B 767

Container LD9

5.588 kg

3,17 x 2,23 x 1,62

3,03 x 2,10 x 1,45

B767, DC10F e MD11

Container LD11/21

3.175 Kg

10,45 x 5,03 x 5,33

10,19 x 4,83 x 5,13

DC10 Pax/ Cgo, MD11 e B747

Container AQ6

6.804 Kg

10,45 x 8,02 x 8,02

10,13 x 7,69 x 8,02

B747 Combi

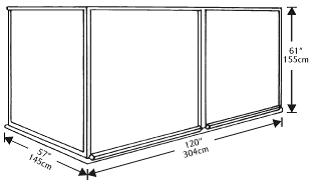

LD11 IATA Code ALP/PLA







Wide body aircraft.

ALP: Full width lower deck container.

PLA: Full width lower deck pallet

Suitable for :  Boeing 747 & 777

ALP

Volume 240 cu. ft. (6.8 cu. m.)

Tare weight 185 kgs/407 lbs

Max Gross Weight 747 & 777 747 & 777

3175 kgs/6985 Ibs

PLA

Volume 245 cu. ft (7.0 cu. m.)

Tare weight 73 kgs/161 lbs

Max Gross Weight 747 & 777 747 & 777

3175 kgs/6985 Ibs

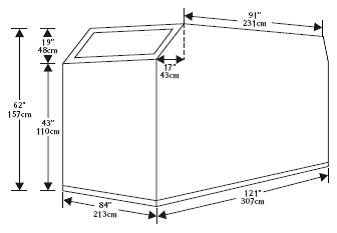

PAP/P1P/PAG for 757-200 Freighter



Wide body aircraft. Full width lower deck container.

Suitable for :

  Boeing 747, 767, 777, 757-200F



Volume 349 cu. ft. (9.83 cu. m.)

Tare weight 120 kgs/264 lbs

Max Gross Weight 4264 kgs/9402 lbs



PAP/P1P/PAG  IATA Code

Wide body aircraft. Full width pallet with net.

Suitable for :  Boeing 747, 767, 777



Volume 240 cu. ft. (11.9 cu. m.) (with allowable overhang)

Tare weight 120 kgs/264 lbs



Max Gross Weight 747 6033 kgs 13273 lbs

Max Gross Weight 767 4626 kgs 10501 lbs

Max Gross Weight 777 4626 kgs 10501 Ibs



PMC  IATA Code: PMC, P6P



Wide body aircraft. Full width pallet with net.

Suitable for :  Boeing 747, 767, 777

Lower deck pallet suitable for :  Boeing 747 & 767

Volume 450 cu. ft. (12.7 cu. m.)

Tare weight 130 kgs/286 lbs

Max Gross Weight 747 5034 kgs 11075 lbs

Max Gross Weight 767 5103 kgs 11227 lbs

Please note that the maximum gross weight is variable for the different aircraft types, in case of transfer



AKH





Lower deck container suitable for : A320



Volume 120 cu.ft. (3.4 cu.m.)



Tare weight 76 kgs/167 lbs



Max Gross Weight 1134 kgs 2499 lbs





LD2 IATA Code APE





Wide body aircraft. Half width lower deck container.

Suitable for :  Boeing 767



Volume 120 cu. ft. (3.5 cu. m.)

Tare weight 70 kgs/154 lbs



Max Gross Weight  1225 kgs/2700 lbs

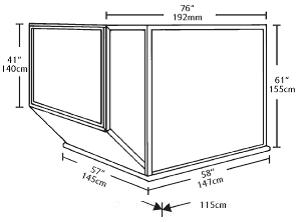

LD3 IATA Code AKE/AVE





Wide body aircraft. Half width lower deck container.

Suitable for :  Boeing 747, 767, 777, 757-200F

Volume 150 cu. ft. (4.2 cu. m.)



Tare weight 72 kgs/158 lbs



Max Gross Weight 1588 kgs/3493 lbs







AQF





Lower deck container.

Suitable for Boeing 767 only.



Volume 253 cu. ft. (7.9 cu. m.)

Tare weight 118 kgs/260 lbs



Max Gross Weigh 2449 kg 5400 lbs

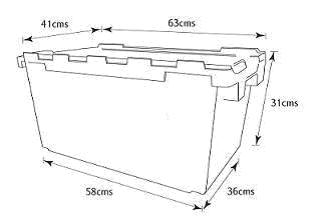

VCB



Wide body and narrow body aircraft.

For the carriage of Secure product shipments only



Compatible aircraft : B757 737 A319 A320 B777 B747-400 B767 B757-200F B747-200F B747-400F DC8-54F MD11F



Volume2.472 cu.ft. (0.07cu.m.)

Tare Weight 5kg/11lbs



Max Gross Weight 22kg/48.5lbs

External Dimensions

16.14" x 14.17" x 12.20" x 24.80"



LD9 IATA Code AAP



Wide body aircraft.

Full width lower deck container.

Suitable for :  Boeing 747, 767 & 777



Volume 350 cu. ft. (10.0 cu. m.)

Tare weight 200 kgs/440 lbs



Max Gross Weight 747  6033kgs/13273 lbs

Max Gross Weight 767  4626kg/10501 Ibs

Max Gross Weight 777  4626kg/10501 Ibs





On board message

On board message shall be sent for single sector flights or last sector of multi sector flights whenever a special load is carried ( AOG, AVI, HUM, BED, etc.)



Example :

QD ISTUSXH ISTKZSB

.DUSKOXH SB/141220 YB

O/B SB0123/14

AVI/2

=



Passenger Transfer Message ( PTM )

Passenger holding a confirmed (OK) or requested (RQ) reservation on a connecting flight within 24 hours after scheduled arrival at the transfer station, have to be recorded numerically and divided into destinations.



Example :

QD FRAAPXH



.ISTUSXH SB/151215 GY



PTM SB0123/15

PTM Call-sign/Date

LH145 CGN M02 B02

To LH145 dest CGN, 2 male 2 bags

SK256 CPH F01 B01

To SK256 dest CPH, 1 Female, 1 bag

=



Passenger Service Message (PSM)



The PSM, shall inform the destination station of a flight of :

à     children traveling alone (UM’s)

à     incapacitated passengers

à     deportees

à     returned inadmissible passengers

who will be disembarking at such destination station.



Each boarding station has to dispatch a separate PSM to each subsequent destination station of the flight. No PSM need to be sent when a TPM is sent to such station.



Example :

QD ISTUSXH ISTKZSB

Disembarking station

.FRAAPXH SB/161425SB

Boarding station

PSM

Message identifier

SB0123/16

Flight number and date

GULAY/UM10

UM aged 10

BECK/WCHC/OWN

Disable pax with own wheelchair O/B

LITZ/WCHC

Non-ambulant passenger

ANGELO/ UM08

UM age 08
